1.6 ECU 'Connector'.

by **Fergus** » Wed, 15 Jun 2011 9:13 +0000

1.6 ECU connector, I just need a few of the 'pins' inside of it.

by **leamyj** » Wed, 15 Jun 2011 9:21 +0000

Fergus wrote:1.6 ECU connector, I just need a few of the 'pins' inside of it.

Fergus, I may have one if I can find it in the garage, PM me your address.

John

Actually, get hold of a pic and post it here, might make locating it easier :mrgreen:

by **Fergus** » Thu, 16 Jun 2011 12:51 +0000

COOL !!
I'll take a pic of the connector tomorrow and post it up, there are two that go into the OEM ECU and they are yellow in colour, one is smaller than the other but it doesn't matter which one as long as I can get the 'pins' which are inside the connector itself :thumleft:

Thanks John :thumright:

Website · by **franksm** » Thu, 16 Jun 2011 2:22 +0000

Here are the part numbers for the ECU connectors (1.8 anyway). You can try and blag some 'samples' off Tyco for free ;-)

The company that makes them is AMP, and the part numbers are theirs:

353027-1 (17-pin plastic connector)
353029-1 (24-pin plastic connector)
353031-1 (31-pin plastic connector)

316836-1 (metal pin)

by **leamyj** » Thu, 16 Jun 2011 6:53 +0000

Fergus, pm me your mobile number..I have a pic on my phone of what I think is the right connector.

John

by **Fergus** » Thu, 16 Jun 2011 11:26 +0000

Frank - Thanks, it's probably the 316836-1 (metal pin) that I need, there's no Tyco in Cork and I got that Christmas feeling - I don't want to wait anymore :lol:

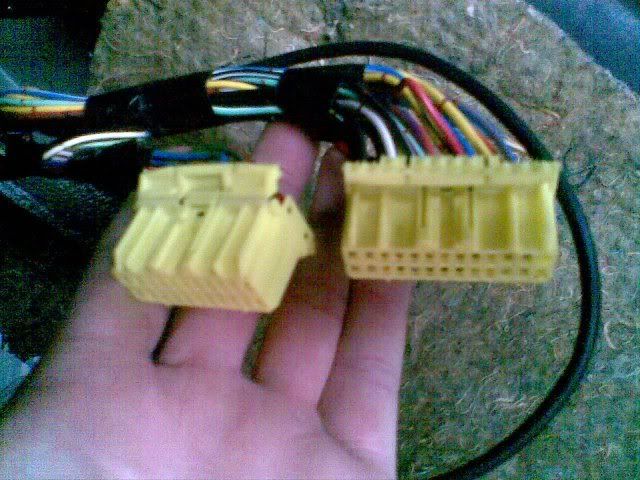

John, it's either of these two connectors that plug into the ECU...PM'ing my mobile number now :thumleft:

by **Fergus** » Thu, 23 Jun 2011 5:53 +0000

Sorted

Got one today in the post from Robert, thanks dude :thumright:

by **leamyj** » Thu, 23 Jun 2011 8:51 +0000

Fergus wrote:Sorted
Got one today in the post from Robert, thanks dude

Glad you're sorted..was wondering if you had forgotten to send me your address :scratch:

by **Fergus** » Sat, 25 Jun 2011 10:58 +0000

DoH! I thought I did on June 16 :shock:

Ah well, tis all sorted now so thanks anyways dude :thumright:
